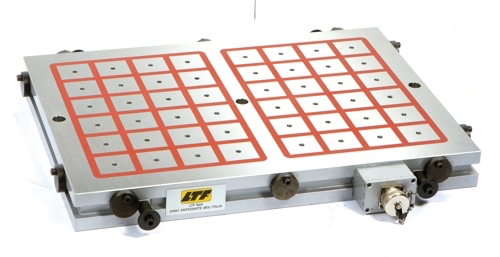

The ULTRA QUAD magnetic clamping system guarantees flexibility and fast positioning of the piece when working on CNC machines. Its square pole technology ensures an even magnetic clamping. The high clamping capacity allows different kinds of operations on work pieces such as moulding and forging. What makes the UQ system innovative and unique is the possibility of dramatically reducing machining and idle times.
One of the many advantages offered by UQ is the possibility of machining five faces simultaneously.
Contouring and through drilling is achieved using a bed of fix polar extensions. (A)
Another great advantage is represented by the mobile polar extensions (B) which are ideal for raw pieces or pieces with irregular surfaces:
• They perfectly adapt to the work piece surface thanks to a flexible magnetic bed
• Quick and even shimming of the work piece
• Distortion-free clamping
• Longer life of tools
• Excellent planarity of the work piece
| Pole pitch | mm | 60 |
|---|---|---|
| Mounting hole in the chuck | M | 8 |
| Gauss force measured in | 17.000 gap - 1,5 mm | |
| Nominal Vertical pole force | daN | 405 |
| Minimum suggested thickness | mm | 10 |
| Minimum piece size | 10x10 cm=100 cm2 | |
| A | mm | 420 |
| B | mm | 590 |
| C | mm | 60 |
| Poles | n° | 48 |
| Force pole | daN | 18.240 |

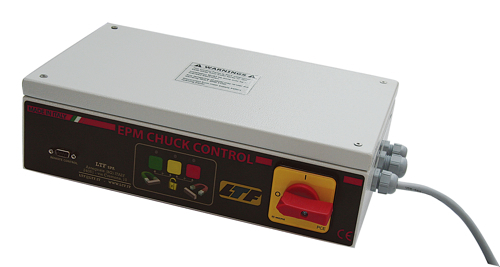

UQ electronic control units are designed for quick activation and deactivation cycles. Each unit is supplied with a mirror controller armored cable, mains cable and a remote control. The state-of-the-art electronic technology in the control unit has a system that ensures the correct saturation of the magnetic elements. All UCSQ controllers can adjust the magnetizing power at 8 different levels. One, two and four-channel versions are available to control several mirrors with a single UCSQ controller. All of our controllers are equipped with advanced software and can ensure that no magnetic residue is present.
discharge cable 3 m, power cable 3 m.
| Max current | A | 32 |
|---|---|---|
| Channels | 1 x milling |
