Modular Vices with Fixed Jaws

Modular Vices with Fixed Jaws

- Vice completely made of steel NiCrMo with hardness of 60÷62 tolerance, 0.015.

- Body wider than jaws (except for model 200÷250); can be clamped on grid plates or on T-slots

- Mobile jaw with very long guides and gib to prevent the jaw from lifting and skidding

- Screw and screw nut enclosed into the jaw to protect them from impacts or wear

- Fast traverse system to the mobile jaw with no need of keys

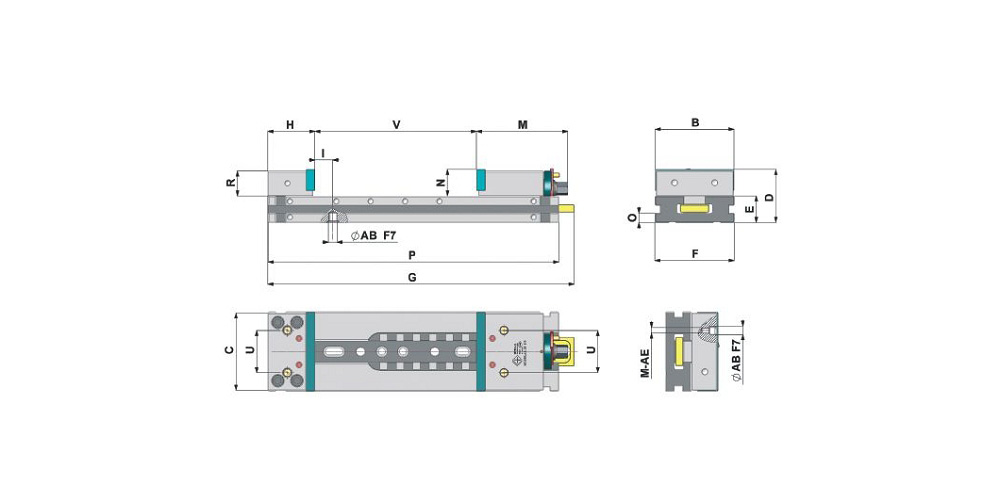

Model


 Size B C D E F G H I M N
        -0.005
-0.020		       0
-0.020
mm mm mm mm mm mm mm mm mm mm mm
ZRNSP125150 125x150 124 121 80 40 125 417 80.4 33.60 164 40
ZRNSP125250 125x250 124 121 80 40 125 517 80.4 33.60 164 40
ZRNSP150200 150x200 149 146 100 50 150 480 89 33.60 171 50
ZRNSP150250 150x250 149 146 100 50 150 530 89 33.60 171 50
ZRNSP150300 150x300 149 146 100 50 150 580 89 33.60 171 50
ZRNSP150400 150x400 149 146 100 50 150 680 89 33.60 171 50
ZRNSP150500 150x500 149 146 100 50 150 780 89 33.60 171 50
ZRNSP175300 175x300 174 173 118 58 175 636 106 33.60 207 60
ZRNSP175400 175x400 174 173 118 58 175 736 106 33.60 207 60
ZRNSP175500 175x500 174 173 118 58 175 836 106 33.60 207 60
ZRNSP200300 200x300 200 193 118 58 175 636 106 33.60 207 60
ZRNSP200400 200x400 200 193 118 58 175 736 106 33.60 207 60
ZRNSP200500 200x500 200 193 118 58 175 836 106 33.60 207 60
ZRNSP250400 250x400 250 245 138 68 195 749 135 4.60 207 70

Model


 Size O P R U V Z AB M-AE Weight
mm mm mm mm mm mm mm mm mm kg
ZRNSP125150 125x150 15 390 38 64 155 309,6 16 12 21,5
ZRNSP125250 125x250 15 490 38 64 255 409,6 16 12 25,6
ZRNSP150200 150x200 17.5 449 47 80 205 360 16 12 34
ZRNSP150250 150x250 17.5 499 47 80 255 410 16 12 37
ZRNSP150300 150x300 17.5 549 47 80 305 460 16 12 38,6
ZRNSP150400 150x400 17.5 649 47 80 405 560 16 12 45
ZRNSP150500 150x500 17.5 749 47 80 505 660 16 12 51,5
ZRNSP175300 175x300 20 603 57 100 305 497 16 12 58,5
ZRNSP175400 175x400 20 703 57 100 405 597 16 12 65
ZRNSP175500 175x500 20 803 57 100 505 697 16 12 70,5
ZRNSP200300 200x300 20 603 57 100 305 497 16 12 61,5
ZRNSP200400 200x400 20 703 57 100 405 597 16 12 69
ZRNSP200500 200x500 20 803 57 100 505 697 16 12 75
ZRNSP250400 250x400 20 738 67 100 407 603 16 12 106
